Preface
Irrational greenhouse gas (GHG) emissions from human activities have a significant impact on global climate change. Greenhouse gases mainly includes CO 2 、CH 4 、N 2 O、H 2 O、OCS, etc. Among them, CO 2 、CH 4 and N 2 O are considered to be main GHG and has been widespread concerned. Soil greenhouse gas respiration is an important flow path in the global greenhouse gas cycle. The loss of CO 2 , CH 4 and N 2 O in the soil significantly increased the gas content of CO 2 , CH 4 and N 2 O in the atmosphere and enhanced greenhouse gas effects. On-line, long-term and accurate measurement of soil greenhouse gas flux, which are of great significance to the study of greenhouse gas flux.

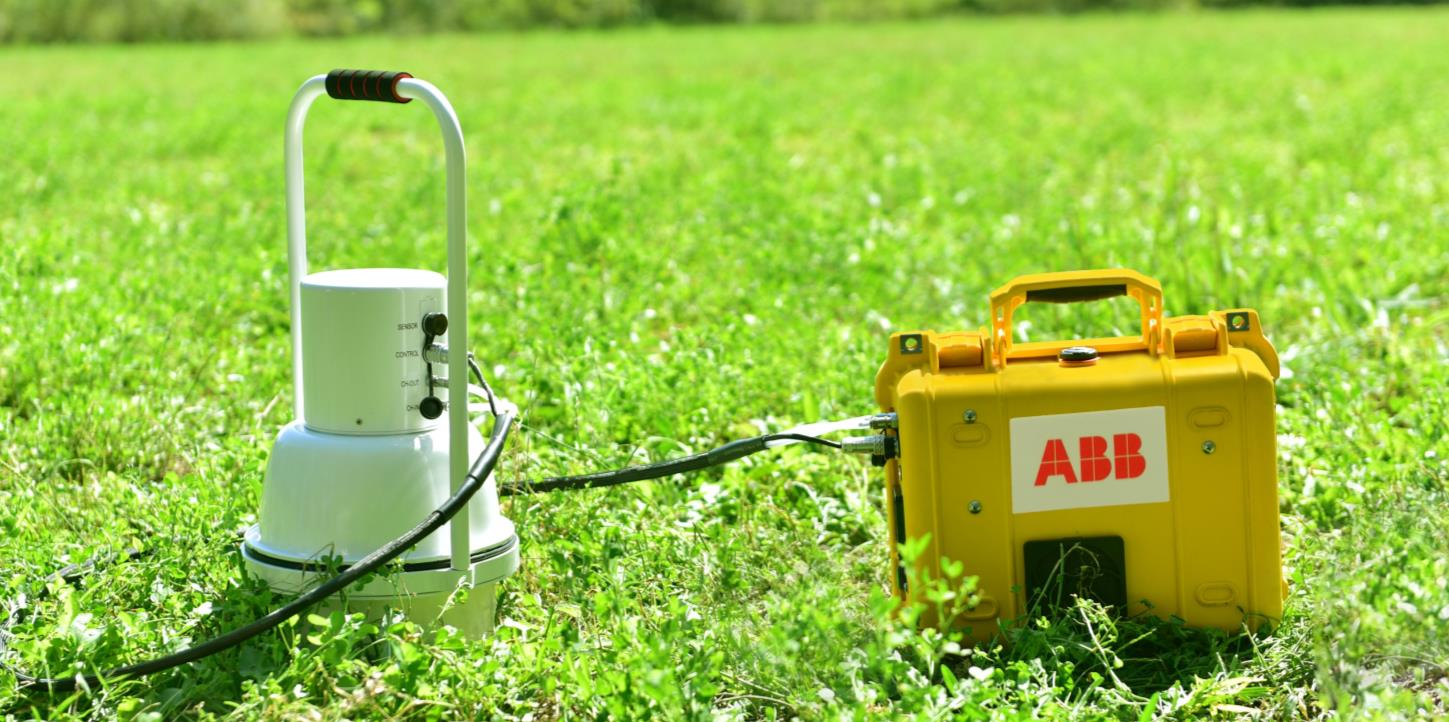

The PS-3000 portable automatic soil respiration system is a measurement system that utilizes the chamber method to measure soil CO 2 and CH 4 flux emissions. The system has the functions of controlling measurement, storage and data processing. The PS-3000 can read the changes of CO 2, CH 4 and H 2 O in the respiration chamber measured by the ultra-portable greenhouse gas analyzer (MGGA) in real time, and combine the monitoring data of the air temperature, atmospheric pressure and soil temperature. The CO 2 and CH 4 emission flux values are then can be obtained. Meantime the acquired raw data and the calculated flux results are stored in the SD card.
SC-11 portable automatic soil respiration chamber can automatically repeat measurements. Also it is light, easy to carry and operate in situ. Uniquely designed, measurement results will be more accurate.
PS-3000 set a variety of measurement parameters through the wireless mobile phone APP real-time, and displays the measurement results of the instrument at the same time.
Main features
l The analyzer could measure CO 2 , CH 4 and H 2 O flux at the same time.
l The analyzer’s measuring frequency could reach 10Hz.
l The system is highly integrated: the controlling system and MGGA analyzer were highly integrated and can be displayed through phone APP.
l Simplified user interface, could easily get the results with only a few operations.
l No need the steps of data post-processing, the measured results can be directly displayed and saved.
l Weight is as light as 5.4 kg.
l The energy consumption is as low as 35W.
Specifications
Analyzer: Microportable Green Gas Analyzer (MGGA)
Able to measure three gases（CO 2 , CH 4 , H 2 O） simultaneously
Repeatability/Precision：
(1δ, 0.1 sec / 1 sec / 10 sec)：
CH 4 ： 9 ppb / 3 ppb / 1 ppb
CO 2 ： 6 ppm / 2 ppm / 1 ppm
Measurement Range：
CH 4 ：0.01~1000 ppm,
CO 2 ：100~10%
Environment conditions:
Sample temperature:
-40 – 50 °C
Operation temperature:
0 – 50 °C
Environment wetness:
0 - 98% RH, no condensations
Measurement speed:
0.01 – 10Hz (can be modified)
Flow response time:
1s (1/e)
Data output:
Wi-Fi / USB
Size and weight:
34×29.5×15.2 cm
5.4 kg (Battery included)
Specifications
l PS-3000 controlling system
Storage media：SD card
Communicating interface：Bluetooth，SDI-12，UART
Synchronous pump: 12V, 1.5A, Flow rate：5L/min
Battery Type：14V@20AH Lithium
l Portable automatic soil respiration chamber (SC-11)
Dimensions：273(L) x 245(W) x 431(H) mm
Measuring Area：298.5（cm²）
Fixed volume of air chamber：3100（cm³）
Cable Length：1.5 m
Air chamber opening and closing period：<10 s
Air Temperature Sensor：pt1000
Soil Temperature/Moisture Conductivity Sensor：CS655
Weight：2 kg
Ordering Information
1. 909-0050: MGGA Greenhouse gas analyzer
2. PS-3000: Controlling system
(including power adapter, SD Card, 2 of 14V@20AH Lithium battery, Lithium battery charger, etc.)
3. SC-11: Portable respiration chamber
Support: Provide technical support and service for life
Manufacturer: LGR, USA / LICA, China
